A325 Structural Bolts

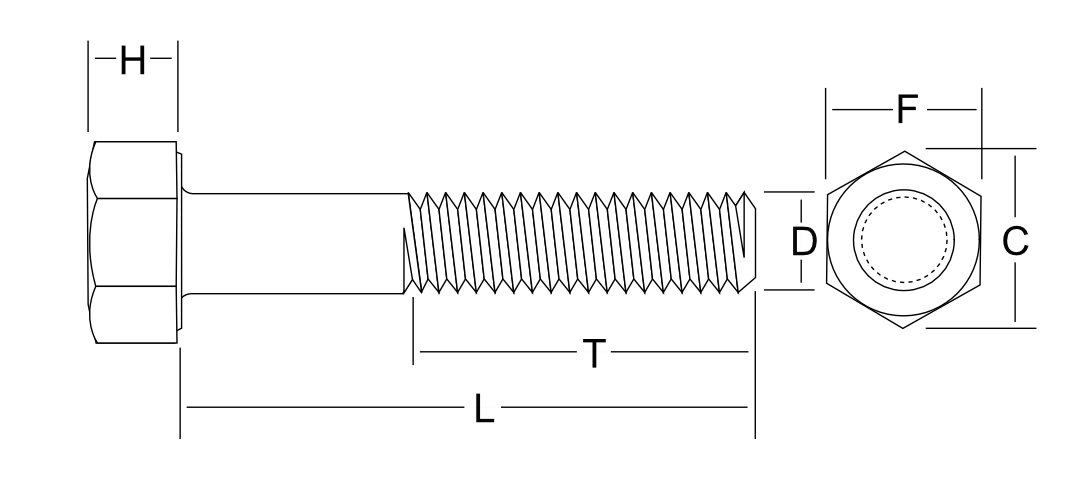

A325 Structural Bolt Drawing

Click table to show drawing
Bolt Diameter D F C H T
Body Diameter Width Across Flats Width Across Corners Height Thread Length
Max Basic Max Min Max Min Basic Max Min Basic
1⁄2 0.515 7⁄8 0.875 0.850 1.010 0.969 5⁄16 0.323 0.302 1.00
5⁄8 0.642 11⁄16 1.062 1.031 1.227 1.175 25⁄64 0.403 0.378 1.25
3⁄4 0.768 11⁄4 1.250 1.212 1.443 1.383 15⁄32 0.483 0.455 1.38
7⁄8 0.895 17⁄16 1.438 1.394 1.660 1.589 35⁄64 0.563 0.531 1.50
1 1.022 15⁄8 1.625 1.575 1.876 1.796 39⁄64 0.627 0.591 1.75
11⁄8 1.149 113⁄16 1.812 1.756 2.093 2.002 11⁄16 0.718 0.658 2.00
11⁄4 1.277 2 2.00 1.938 2.309 2.209 25⁄32 0.813 0.749 2.00
13⁄8 1.404 23⁄16 2.188 2.119 2.526 2.416 27⁄32 0.878 0.810 2.25
11⁄2 1.531 23⁄8 2.375 2.300 2.742 2.622 15⁄16 0.974 0.902 2.25

Dimensions per ASME B18.2.6 2011
